Clarifying the Project Stage
The site photos and installation records show Phase 1 shelters. They illustrate the installed appearance. Phase 2 covers a new batch of 23 shelters. At the time of this article, production preparation and delivery coordination had started. The 23 Phase 2 shelters were not yet installed.
Phase 1 provides installed references. Phase 2 starts manufacturing 23 bus shelters based on that project experience.
Phase 1 Reference: 30 Installation Points

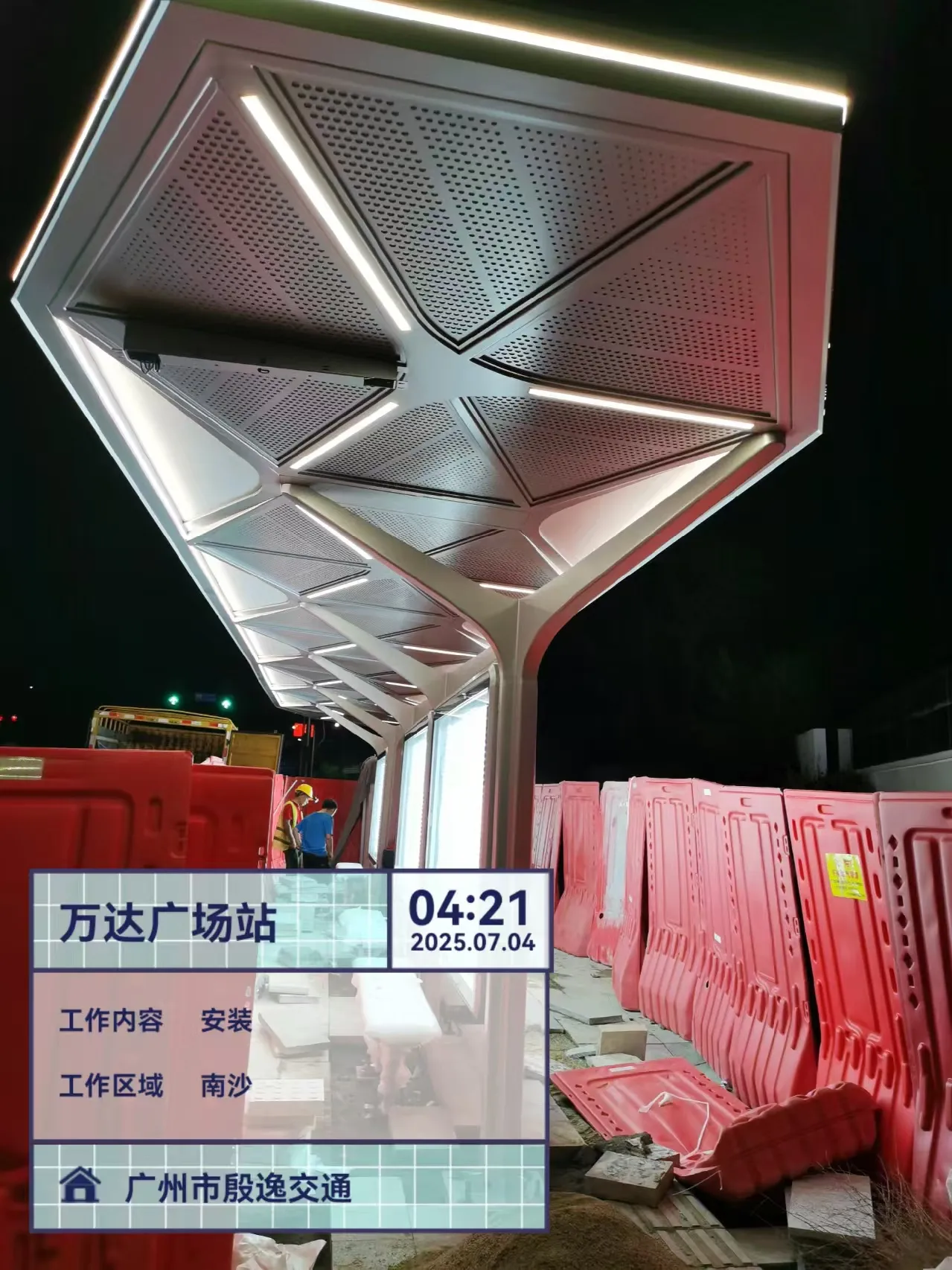

Phase 1 installed several shelter types at urban transport locations. These include Jiaomen Metro, the district government service center, Wanda Plaza, Jinzhou Metro and Nansha Central Hospital.
Phase 1 covered 30 installation locations. The schedule lists one 9 m shelter, nineteen 12 m shelters, three 15 m demonstration shelters and seven 18 m shelters.
Phase 2 Scope: 23 Bus Shelters
Building on the Phase 1 references, Nansha Phase 2 moves into a new manufacturing batch. The Phase 2 scope covers 23 bus shelters: 19 units of 12 m shelters and 4 units of 9 m shelters.
Phase 2 continues Huasheng's existing project work. It covers design review, factory body assembly and roof lifting on site. These steps use the custom bus stop shelter manufacturing capabilities described in our public transport projects.
From Design Intent to Manufacturing Plan
The Architectural Design and Research Institute of South China University of Technology developed the Nansha shelter design. Academician He Jingtang's team led the work. Features include a 2.7 m cantilever canopy, Y-shaped column heads and hexagonal canopy modules.
Huasheng converts the design into a manufacturing plan. The plan must support production, transport and installation on site.
Huasheng Workflow: Early Translation, Body Assembly, On-Site Hoisting
Huasheng first confirms manufacturing and installation requirements. Design, engineering, production and project teams review the canopy, Y-shaped column heads, light-box body, electrical provisions and site conditions. They use this review to prepare the production plan.

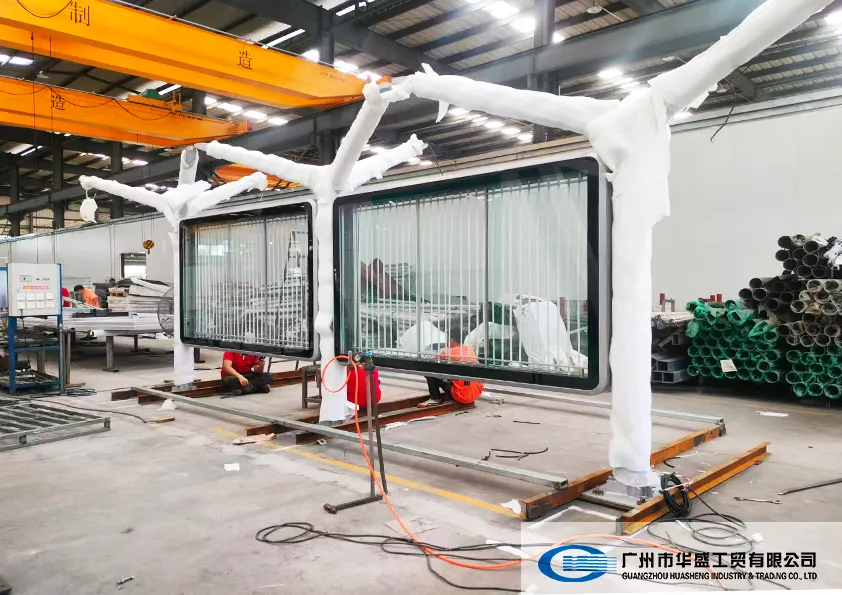

In the factory, the columns and light-box body are assembled first into a transportable, installable body unit. On site, the body unit is positioned and fixed before the canopy modules are hoisted into place.
Project File
- Project name: Phase 2 of the Guangzhou Nansha District bus shelter quality-improvement project
- Location: Jiaomen area, Nansha District, Guangzhou
- Phase 1 reference: 30 installation points, including small 9 m, medium 12 m, demonstration 15 m, and large 18 m types
- Phase 2 scope: 23 bus shelters — 19 units of 12 m and 4 units of 9 m
- Current stage: Phase 2 manufacturing preparation / delivery coordination
- Image note: the site photos and installation records in this article are Phase 1 installed-effect references
